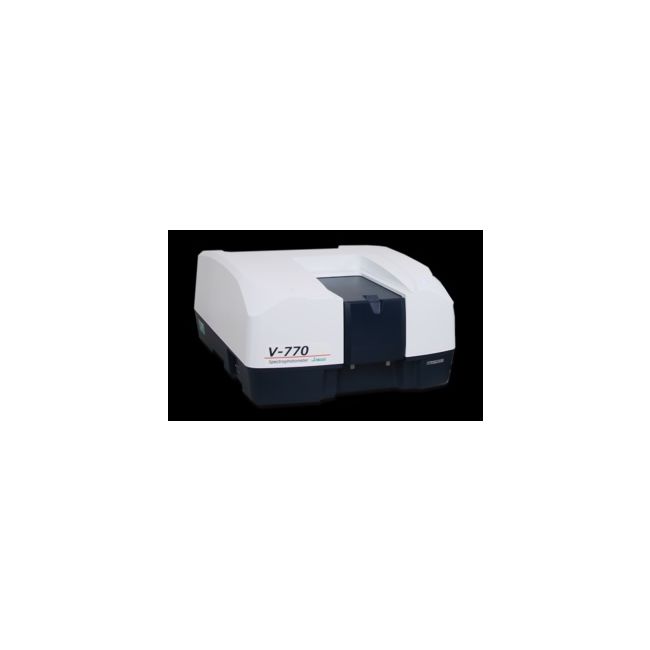

V-770 Double Beam UV-Visible/NIR Spectrophotometer
£0.00
The V-770 UV-Visible/NIR spectrophotometer features a unique single monochromator design for maximum light throughput with excellent absorbance linearity. A PMT detector is used for the UV to visible region and a Peltier-cooled PbS detector for the NIR region.
The V-770 measures the wavelength range of 190 to 2700nm (option 3200nm). The single monochromator design offers a significantly higher energy throughput than a double-monochromated design resulting in a better S/N ratio over the entire spectral range, even with narrow spectral bandwidth. The gratings and detectors switch-over can be set to change automatically between 800-900nm .
Availability:
In stock
SKU
V-770
System Features
IQ Accessory and IQ Start
IQ Accessory is used for automated accessory recognition and can be linked to a measurement method. The spectral data files include instrument and accessory information. IQ Start together with the Start Button on the front of the instrument can be used to start routine methods at the press of a button.
Wavelength Range from UV to NIR
The V-770 has a wavelength range of 190 to 2700nm (option 3200nm). The single monochromator design offers a significantly higher energy throughput than a double-monochromated design resulting in a better S/N ratio over the entire spectral range, even with narrow spectral bandwidths. The gratings and detectors can be set to switch over automatically anywhere between 800 and 900 nm.
Accessories
An extensive range of accessories is available for the V-700 Series UV-Visible-NIR spectrophotometers for virtually any biological, material science application, or routine QA/QC measurement. Some accessories are common across the V-700 Series and can only be used with specific models. Refer to the instrument brochure for details about the accessories.
Options include liquid cell holders, micro and ultra-micro cell holders, flow cells, and accessories for solid samples. More advanced accessories include automated cell changers, sippers, integrating spheres, absolute reflectance accessories, and temperature control systems.
Instrument Validation and Regulatory Compliance
The V-700 Series includes user-selectable validation for USP, EP, and JP (or manually editable). With optional IQ/OQ.
Operating Systems
The V-770 UV-Visible/NIR spectrophotometer is operated using Spectra Manager™ Suite, the innovative cross-platform spectroscopy software, is compatible with Windows 10 or 11 Pro and Enterprise operating systems.
The V-700 Series has a growing list of software applications for Spectra Manager™. If you have an application that is not listed, please let us know. We may already have it, or we can prepare an application tailored to your specific requirements.
Spectra Manager offers full system control and advanced data processing. Spectra Manager™ CFR is the 21 CFR part 11 compliant version of the software and is available as an option.
