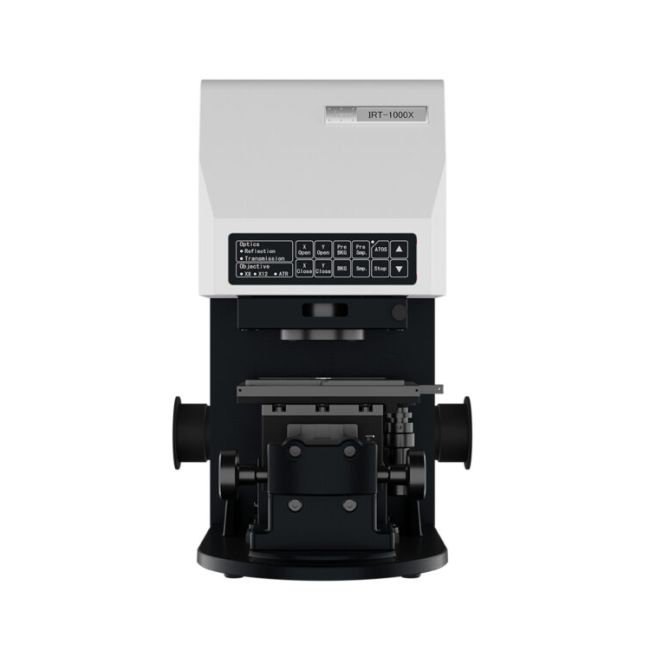

IRT-1000X FTIR Microscope
£0.00
The IRT-1000X is a micro-sampling accessory designed for easy measurement of micro-sized samples. JASCO has successfully integrated the essential functions of an IR microscope into a compact body, resulting in a small, lightweight, and cost-effective solution. The IRT-1000X can be easily mounted in the sample compartment of an FTIR main unit, just like other standard IR accessories.
Availability:
In stock
SKU
IRT-1000X
IRT-1000X FTIR Microscope
Experience precision and versatility with our advanced microscope, designed with a user-friendly touch panel and a dedicated sample compartment. Effortlessly switch between transmittance, reflectance, and ATR measurement modes, and achieve high-resolution results using 8x or 12x ATR Cassegrain objectives—offering spatial resolutions down to 20 µm. Monitor sample contact in real time with a built-in pressure sensor and take advantage of a flexible incidence angle range of 40–53°. Choose from premium ATR objectives including ZnSe, Ge, or Diamond to suit your application. Optional accessories such as a purge case, demountable liquid cell, and DRIFTS sample holder further enhance your analytical capabilities.
- Sample compartment type microscope
- Easy operation with touch panel
- Transmittance, reflectance, and ATR measurements modes
- Sample observation and measurement using ATR Cassegrain objectives
- 8x and 12x Cassegrain objectives
- Spatial resolution of 100 mm for DLATGS and 20 mm for MCT
- Monitoring ATR objective contact with the sample using a pressure sensor
- Incidence angle of 40 – 53° for the ATR objective
- Various ATR objectives available: ZnSe, Ge or Diamond
